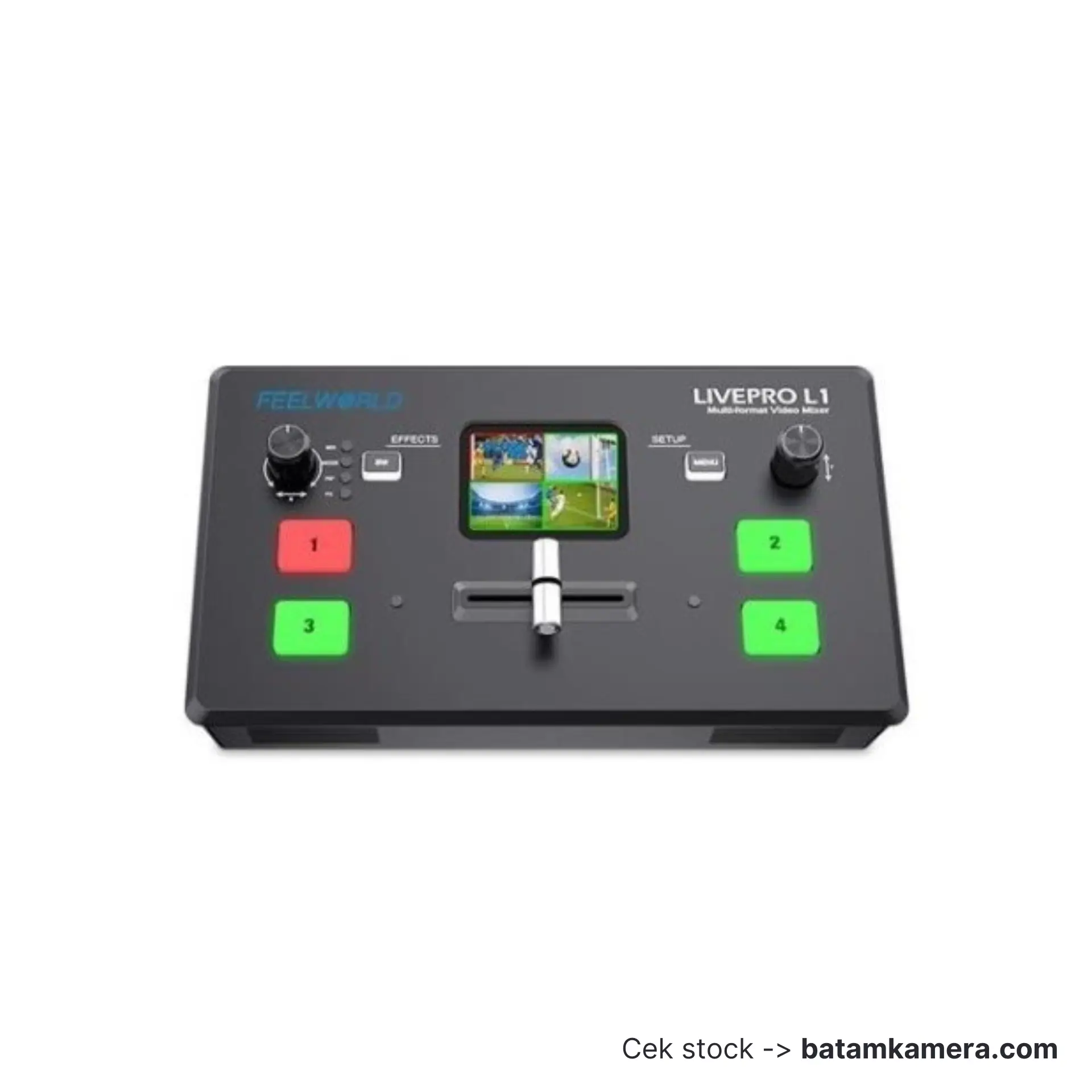

Model：LIVEPRO L1 V1
Display Spec.
| Model | LIVEPRO L1 V1 |
| Screen Size | 2.0″ TFT Display |
| Backlight | LED |
Input
| 4 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
| 1×USB TypeA | USB 3.0 |
Audio
| Audio In | 1×3.5mm Stereo Jack |
| Audio Out | 1×3.5mm Stereo Jack |
Input Solution
| HDMI |
| SMPTE 720p@50/60|1080i@50|1080p@23/24/30/50/60 |
| VESA 1024X768@60|1280 X 720@50/60|1280 X 768@60|1280X1024@60|1360X768@60|1920X1080@60i |1920 X 1080@50i |
Output Solution
| HDMI |
| SMPTE 720p@50/60|1080i@50|1080p@23/24/ 30/50/60 |
| VESA 1024X768@60|1280 X 720@50/60|1280 X 768@60|1280X1024@60|1360X768@60|1920X1080@60i |1920 X 1080@50i |
General
| Input Voltage | DC 12V / 1.5A |
| Max Power | 18W |
| Working Temperature | -30℃～50℃ |
| Humidity | 10%~85% |
| Unit Size | 190(L) x 110(W) x 43(H)mm |
| Unit Weight | 500g |
| Color Box Size | 260(L)*130(W)*82(H)mm |
| Outer Carton Qty | 15 |
| Outer Carton Size | 470*275*480mm |
